Handheld Mobile Computers

CipherLab RK26

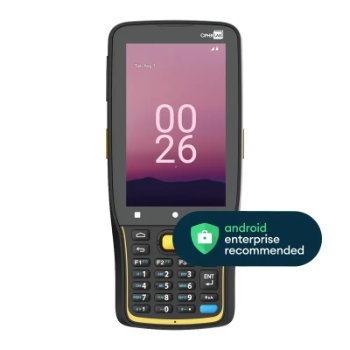

CipherLab RK26 - Wi-Fi 6 Rugged Mobile Computer

Wi-Fi 6 Rugged Mobile Computer

CipherLab's Wi-Fi 6 rugged RK26, with an IP65 rating and up to 1.8m impact resistance, excels in both indoor and outdoor tasks. Its 4000mAh battery is replaceable and rechargeable, and an ergonomic option allows for one-handed use.

The RK26 series features high-responsive keypads, offering standard, mid, or advanced range scan readers. With its 16MP PDAF camera, it ensures fast and clear image capture. OCR technology eliminates typing errors by precisely extracting text from documents or objects. Wi-Fi 6 enables smooth transmission of large files. The RK26's durable design fits in your palm, ensuring peak performance across diverse tasks.

Industry Use:

  • Retail
  • Light-duty Warehousing
CipherLab RK26 - Large Screen and Responsive Keys for Efficient Workflow
Large Screen and Responsive Keys for Efficient Workflow
The RK26 offers a 4-inch multi-touch screen with auto-adjustable backlighting and 500-nit brightness for optimal readability. Reading angles of 10° and an optional 70° ensure easy on-screen data checks. Its compact and ergonomic design reduces fatigue during extended use, allowing comfortable one-handed operation. High-feedback buttons enable glove-friendly use and faster typing. The non-fading industrial keypad ensures visibility over time. Available in 25-key and 28-key models, the RK26 caters to diverse user needs.
Seamless Data and Image Capture for Enhanced Productivity
CipherLab's RK26 offers reader engine options (standard, mid, and advanced) for versatile selection. It captures data from over 12.2m away. With a 16MP PDAF rear camera, the RK26 takes clear images with quick focus. It incorporates OCR (Optical Character Recognition) technology, enabling to extraction of characters via both camera and scan reader, streamlining tasks and reducing typing errors.
CipherLab RK26 - Seamless Data and Image Capture for Enhanced Productivity

Powerful Performance and Security for Continuous Productivity

AER Logo

Powered by a Qualcomm octa-core 2 GHz processor, the RK26 delivers impressive speed, app performance, and battery efficiency. Users can experience seamless app use and web browsing. The RK26's GMS (Google Mobile Service) verification ensures compatibility with Google applications, and it operates on Android 12 (upgradeable to Android 14) with AER (Android Enterprise Recommended) certification for enterprise security. The RK26's 4GB/64GB memory effortlessly handles various workloads, offering powerful and reliable performance for efficient and secure task completion.

CipherLab RK26 - Wi-Fi 6 and Real-time Communication
Wi-Fi 6 and Real-time Communication
The RK26 offers advanced wireless connectivity for an enhanced networking experience. Featuring Wi-Fi 6, it ensures faster, more reliable connections with security and low latency. The RK26's 2x2 MU-MIMO improves speed and efficiency, even in crowded environments. With 4G LTE, swift file transmission keeps mobile workers connected. The RK26's USB Type-C port supports seamless data transfer and an additional charging option. With Bluetooth 5.1 and NFC, the device offers robust wireless capabilities for quick connections to printers, headsets, and more.
Maximizing Efficiency in Inventory Management with UHF RFID Capabilities
The RK26 extends its UHF RFID capability through the UHF RFID reader attachment. Its read and write functions enhance inventory management efficiently and cost-effectively. It achieves a reading rate of 700+1 tags per second at distances exceeding 8 meters, and over 1000+2 tags per second at over 10 m. Software utilities such as RFID Android SDK, EZCong, and EZEdit are available, saving time in the development and deployment of RFID solutions.

1. Based on Impinj R2000 chip
2. Based on Impinj E710 chip. Availability of this model is subject to confirmation upon official announcement. Please check with our sales representative for the most current information.

CipherLab RK26 - Maximizing Efficiency in Inventory Management with UHF RFID Capabilities
Text Here

Specifications


ItemRK26
PerformanceOperating SystemAndroid 12 (GMS), upgradable to Android 14
CPUQualcomm 4290 Octa-core 2 GHz
Memory64GB UFS Flash / 4GB LPDDR4X RAM
ExpansionMicro SD card slot with SDHC (up to 32GB) and SDXC (up to 2TB) support
SIM2 nano SIM / 1 nano SIM and 1 eSIM ((by request)
Operating PowerReplaceable and rechargeable 3.85V, Li-polymer 4000mAh
Working Hours18+ hours
Alert1 tri-color LED, 1 bi-color LED, vibrator
Interface Supported6-pin I/O & USB 3.1 Gen 1 Type-C with OTG
Wireless
Communication		WWANEDGE/GPRS/GSM: 850/900/1800/1900
UMTS/HSPA+: B1/B2/B4/ B5/B6/B8
FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28/B66
TDD-LTE: B38/39/40/41
Support VoLTE and Worldwide Band
WLANIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/ax; MU-MIMO 2x2 (WI-FI 6 model only)
WPANBluetooth® Class II, V5.1 dual mode, V2.1 with Enhanced Data Rate (EDR)
GPS³GPS/A-GPS/GLONASS/Galileo/Beidou
Data CaptureBarcode Scanning2D imager (Standard range: SE4750SR / SE4100; Middle range:SE4750MR; Advanced range SE5500)
RFID Read / WriteHF RFID 13.56 MHz frequency which supports ISO14443A, ISO14443B, ISO15693, and Felica Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
CameraRear: 16 megapixels PDAF with LED flash
Physical
Characteristics		Display4'' WVGA 480 (W) x 800 (H), Transmissive IPS LCD, outdoor visibility (500 nit), optically bonded Touch Panel
Touch PanelCorning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch,  allow water rejection and wet finger
Interactive Sensor
Technology		Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope
Keypad25-key/28-key numeric keypads with assignable keys,volume up and down keys, left and right trigger keys, power key
AudioSpeaker (78 dB at 40 cm), microphones with echo and noise cancellation
Size (LxWxH )168 x 73.8 x 26.5 mm
Weight292 g (with battery)
User EnvironmentOperating Temperature-20°C to 50°C / -4°F to 122°F
Storage Temperature-30°C to 70°C / -22°F to 158°F (without battery)
Humidity
(non-condensed)		Operating 10% to 90% / Storage 5% to 95%
Impact ResistanceIP65, 300 tumbles at 0.5 m
Standard: 1.5 m (5 ft.) multiple drops onto concrete.
With rubber boot: 1.8 m (6 ft.) multiple drops onto concrete.
Electrostatic Discharge± 15 kV air discharge, ± 8 kV contact discharge
Regularity ComplianceLTE : CE, FCC, IC, NCC, TBL, JRL, BIS, WPC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN, NBTC WI-FI 6 ONLY : SRRC, CCC, BSMI, NCC, CE, FCC, IC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN
Development Support Android 12.0 SDK, HTML 5 API, Reader API (Java/Xamarin)
Application SoftwareReMoCloud, EnDeCloud, ADC, WMDS, APPLock, Terminal Emulator, BT Printer Mate, Device Health, SIP Controller, Software Trigger, Signature Capture, EZEdit, CipherLab Assistant Service, Ping Tool, Wireless Initiator, IntelliWorker, Reader Config, Button Assignment, HF RFID Config, EZConfig, Enterprise Setting, Barcode To Setting, LogGen, Agility Intelligence, Cloud Message, EZcheck
Certified ApplicationReMoCloud, EnDeCloud, SOTI MobiControl, VMware Workspace ONE, Ivanti Wavelink Velocity
AccessoriesCharging and communication cradle, USB snap-on cable, Hand strap, Rubber boot, Pistol grip, 4-slot battery charger, Multi-slot Terminal charging cradle2, UHF RFID reader2
Warranty1-year standard warranty
  1. Minimum hours under WLAN and 2D scanning per 20 seconds, LCD 50% backlight and speaker on (volume is default) at 25°C, RFID off / Bluetooth® off / IEEE 802.11 a/b/g/n/ac on. The test is based on one broadcasting packet per second.
  2. Please contact us for availability
  3. GPS function is only available for WWAN models

*Specifications subject to change without notice.
