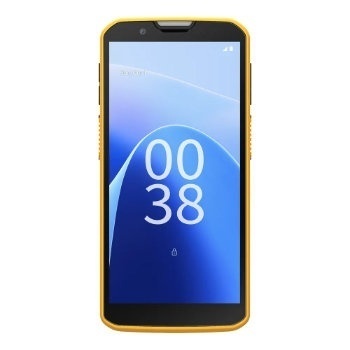

5G Touch Mobile Computer
CipherLab's RS38 touch mobile computers, engineered with the latest wireless technologies such as 5G, Wi-Fi 6E, and CBRS, ensure swift access to essential information for mobile workers in logistics, retail, and other industries. With a large 6-inch screen, workers can view more content on a single screen while scrolling less. Thanks to advanced manufacturing techniques, the RS38 is thinner, lighter and yet tougher, meeting the demands of dynamic work environments.
The RS38 utilizes the latest processor and memory technologies to deliver high performance with planned support for Android 13 through version 18. CipherLab's ReMoCloudTM optimizes operations, enhancing frontline worker productivity and simplifying IT management across the device lifecycle.
Industry Use:
- Transportation and Logistics
- Retail
- Warehousing
Unmatched Performance and Connectivity Indoors and Outdoors
Experience exceptional performance with the Qualcomm® QCM4490 octa-core processor, empowering frontline workers to manage demanding and multitasking applications with ease. Enjoy up to 8 GB of RAM, 128 GB of flash storage, and expandable storage options through a MicroSD card slot. With Wi-Fi 6E and 5G, mobile workers benefit from faster speeds, while support for CBRS private networks enables private and geographically restricted LTE/5G connectivity in large indoor and outdoor facilities.
High-Speed UHF RFID Reader Boosts Efficiency
The RS38 offers an optional UHF RFID reader, capable of reading an impressive 1300 tags per second. This feature is advantageous for retail, logistics, and delivery workers, enabling them to streamline tasks such as inventory management, asset tracking, and real-time item location tracking.
Built-in OCR Technology Optimizes Workflows and Minimizes Errors
The RS38's OCR technology captures and converts text into digital data, optimizing logistics and retail operations. It effectively captures data from various sources, such as logistics documents, tire identification numbers (TIN), expiry dates, driver's licenses, and utility meters, reducing manual errors and enhancing data accuracy. With its multiple data capture methods, the RS38 significantly enhances work productivity and efficiency.
Versatile Scanning Options and High-Quality Imaging
The RS38 offers two scanning options: standard range SE4100 and SE4770, or advanced range SE5500, catering to different scanning requirements, whether for close-up or long-range scanning, up to 12 meters away*. Moreover, equipped with a 16 MP PDAF camera, it excels at capturing sharp, detailed images even in challenging low-light or fast-moving conditions, making it perfect for documenting proof of delivery, condition, and other related purposes.
*depending on symbology type and size.
Excelling in Harsh Environments
With IP65 and IP68 ratings and drop resistance of 1.5 meters (1.8 meters with rubber boot), the RS38 is engineered to excel in demanding environments without sacrificing sleek, ergonomic design. It can withstand accidental drops and provide peace of mind to workers in rainy conditions, in the field, or in dusty warehouses.
Comfortable Mobility and Uninterrupted Operation
The RS38 delivers a compact and lightweight design, providing comfortable carry for mobile workers during their shifts. Offering two battery options - standard 4500 mAh and extended 6800 mAh - along with hot-swap capability, it safeguards against data loss or operational interruptions. With over 14 hours of operating time, the RS38 ensures continuous workflow for frontline workers.
Efficient Viewing and Operating While on Duty
The large 6-inch touchscreen, with a bright 630-nit display, facilitates viewing more information without the need for continual scrolling, even in bright light. It supports stylus, bare hand, or gloved operation, and remains functional in rainy conditions, ensuring frontline and delivery workers can work without interruptions.
Efficient Device Deployment and Management with ReMoCloud
ReMoCloud supports Google Zero-touch enrollment for large-scale deployment. Simply scan the barcode for swift device setup. Its Geofencing capability helps IT managers locate misplaced or stolen devices, protecting critical information and assets. Additionally, its Remote Control feature empowers IT managers to remotely diagnose and troubleshoot devices, reducing support costs and enhancing overall device availability.
*Geofencing is only available for WWAN models.
Text Here
Specifications
| Item | RS38 | |
|---|---|---|
| Performance | Operating System | Android 13 (GMS) upgradable to Android 18 |
| CPU | Qualcomm QCM4490 Kryo Octa-core CPU 2.4 GHz | |
| Memory | 8GB LPDDR5 SDRAM/128GB UFS3.1 ROM | |
| Expansion | Micro SD Card Slot x1 , SDHC up to 32GB, SDXC up to 1TB | |
| SIM | 1 Nano SIM/ 1 eSIM | |
| Operating Power | Hot-swappable and rechargeable Li-Polymer 4500mAh, Extended battery 6800mAh | |
| Working Hours1 | 14+ hours (standard battery) 21+ hours (extended battery) | |
| Fast Charging2 | Standard battery 2 hours from 0% to Full Capacity Extended battery 3 hours from 0% to Full Capacity | |
| Alert | 1 tri-color LED, 1 bi-color LED, vibrator | |
| Interface Supported | 8-pin I/O & USB 3.1 Gen 1 Type-C with OTG | |
| Wireless Communication | WWAN | GSM:850/900/1800/1900 WCDMA: B1,B2,B4,B5,B6,B8, LTE:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/B48/B66/B71 5G-NR FR1:n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n34/n38/n39/n40/n41/n48/n66/n71/n77/n78/n79 Supports private networking (LTE/5G) |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, support fast roaming DBS(Dual Band Simultaneous Support), WiFi6E(802.11ax), MU-MIMO2x2 | |
| WPAN | Bluetooth® 5.2, Class 2, V2.1 Enhanced Data Rate(EDR), V4 .2 Bluetooth Low Energy (BLE) | |
| GPS³ | GPS , GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS, a-GPS, supports XTRA | |
| Data Capture | Barcode Scanning | 1D/2D Imager(Standard Range SE4100/SE4770; Advanced Range SE5500) |
| RFID Read / Write | Full tags support base on NFC forum, ISO14443A&B, FeliCa, ISO15693. Support Apple VAS certified Support NFC (Peer-to-Peer, Card Reader, Card Emulation) | |
| Camera | Rear 16 Megapixels PDAF with LED flash / Front: 8 Megapixels fixed focus | |
| Physical Characteristics | Display | 6'' FHD + 1080(W) x 2160(H) / Outdoor visibility 630 nits (typ), optically bonded Touch Panel |
| Touch Panel | Corning® Gorilla® Victus, Two-mode supports glove and wet finger. Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger. Anti-fingerprint coating. | |
| Interactive Sensor Technology | Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer, Barometer), Gyroscope | |
| Keypad | 1 programmable key, volume up and down keys, left and right trigger keys, power key | |
| Audio | Dual Speaker (85dB at 40cm), 3 microphones with echo and noise reduction | |
| Size (LxWxH ) | 165.4 x 78.5 x 15 mm | |
| Weight | 268g (with 4500mAh battery) 315g (with 6800mAh battery) | |
| User Environment | Operating Temperature4 | -20°C to 50°C / -4°F to 122°F |
| Storage Temperature | -30°C to 70°C / -22°F to 158°F (without battery) | |
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% | |
| Impact Resistance | IP65 & IP68 1000 tumbles at 0.5 m; 1000 tumbles at 1 m with rubber boot, Standard: 1.5 m (5 ft.) multiple drops to tile over concrete per MIL STD 810H With rubber boot: 1.8 m (6 ft.) multiple drops to concrete over room temperature per MIL STD 810H | |
| Electrostatic Discharge | ± 15 kV air discharge, ± 8 kV contact discharge | |
| Regularity Compliance | LTE : CE, FCC, IC, NCC, TBL, JRL, BIS, WPC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN, NBTC WI-FI 6 ONLY : SRRC, CCC, BSMI, NCC, CE, FCC, IC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN | |
| Development Support | Android 13.0 SDK, HTML 5 API, Reader API (Java/Xamarin/.NET MAUI) | |
| Application Software | Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, BT Printer Mate,A-Demo, Signature Capture, HF RFID, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, EZConfig, Ezedit, Chrome, OCR | |
| Certified Application | SOTI MobiControl, AirWatch, Ivanti, ReMoCloud, EnDeCloud | |
| Accessories | Single charging cradle, Single charging and communication cradle, 4-slot battery charger, 4-slot battery and 4 terminal charger, 5-slot terminal charger, Hand strap, Rubber boot, Screen protector, Shoulder strap, Pistol grip, UHF RFID reader, Extended battery, Belt holster | |
| Warranty | 1-year standard warranty | |
- Minimum hours under WLAN and 2D scanning per 20 seconds, LCD 50% backlight and speaker on (volume is default) at 25°C, RFID off /Bluetooth® off / IEEE 802.11 a/b/g/n/ac on. The test is based on one broadcasting packet per second.
- Charger/Cable must have QC 4.0 or PD 3.0 above certification. 2 hours Fast Charging time from 0% to Full Capacity ( standard battery ) with above 27W QC/PD adapter. 3 hours Fast Charging time from 0% to Full Capacity ( extended battery ) with above 27W QC/PD adapter.
- GPS function is only available for WWAN models.
- Maybe different with variant hardware configurations.
Text Here
Accessories
Single charging cradle
Single charging and communication cradle
4-slot battery charger
4-slot battery and 4 terminal charger
5-slot Terminal charger
Hand strap
Rubber boot
Screen protector
Shoulder Strap
Pistol grip
UHF RFID reader
Extended battery
Belt holster
Also Available
CipherLab ReMoCloud
The Ideal Solution for Managing Multiple Devices
With the market trends and demands for enterprises to manage multiple devices, ChipherLab provides an ideal solution. CipherLab's ReMoCloud is perfect for any enterprise, IT managers or administrators with the need to configure and deploy multiple CipherLab devices. It's a mobile management software solution, developed by CipherLab, that can efficiently manage remotely and securely via the web anytime and anywhere. As one of Google EMM's (Enterprise Mobile Management) solutions and supported by Google Zero-touch enrollment, ReMoCloud can effortlessly deploy settings, track, monitor and manage updates on all the devices.
Features
- Express device enrollment via QR code scan or Zero-touch across multiple devices
- Device configuration for multiple users with different profiles
- Update and deploy devices on schedule
- Real-time checks and complete system setting control and adjustments
- Manage Apps on multiple devices quickly and securely
